OUR VARIOUS INSTRUMENTS
If you do not really know which instrument you need, we recommend that you read The ultimate guide to choosing radin instruments or digital radon meters first.
Sniffer
A radon sniffer is used to identify the main entry point into a building for soil air containing radon. In order to ensure the right results during, for example, an inspection, it is essential to use a sniffer with a rapid yet accurate measurement capability. For this, you need an instrument with excellent detection sensitivity and a rapid response time that also generates plenty of raw data. A sniffer must have an active pump as well as an alpha-spectrometer to avoid contamination of the long-lived radon progeny in the measurement chamber.
The use of a so-called pulsed ionisation chamber enables ATMOS to perform this type of measurement quickly and in a unique manner.
ATMOS9 850 €ATMOS is the world’s most sensitive radon instrument with energy-dissolving pulse chamber. It can be used in both field and laboratory. This can be achieve that thanks to its low weight, high sensitivity and fast response time together with an efficient pump and analysis. With ATMOS you get: Correct radon content with 10% error margin within 10 minutes. Ability to perform various measurements at 20 minutes intervals. A complete software for analyzing time distribution of radon content and its energy spectrum. An easily portable instrument with high memory and battery capacity. You can perform significantly more measurements with ATMOS in one day compared to any other instruments on the market. ATMOS also logs ambient temperature, humidity and atmospheric pressure with its integrated sensors. Common uses for ATMOS are property inspection and follow-up measurements after action, but it is also a common reference instrument for calibration chambers.
RAD8Next-generation electronic radon monitor The new RAD8 is a high-quality scientific electronic radon monitor with complete upgrades compared to the previous version, RAD7, which has been an industry standard for various applications including oceanography, hydrogeology, geology, health physics, environmental remediation, radon testing, measurement technology, and more for several years. With its groundbreaking features and optimizations for outdoor use, RAD8 enhances radon/thoron monitoring in the field and in the laboratory. Its environmentally safe and portable design, coupled with a long battery life and IP67 water/dust resistance even when the case is open, means you can use RAD8 comfortably and worry-free whether you're working near water, in rugged terrain, in a dusty mine, or within the controlled environment of a laboratory. [av_contact email='sales@radonova.se' title='Quotation request' button='Send request' on_send='' sent='We have received your request and will return with a quote shortly.' link='manually,http://' subject='Offertförfrågan UK - RAD8' autoresponder_email='sales@radonova.se' autorespond='' captcha='' form_align='' color='' av_uid='' custom_class='' admin_preview_bg=''] [av_contact_field label='Company' type='text' options='' check='is_empty' width='element_half'][/av_contact_field] [av_contact_field label='Name' type='text' options='' check='is_empty' width='element_half'][/av_contact_field] [av_contact_field label='E-mail' type='text' options='' check='is_email' width='element_half'][/av_contact_field] [av_contact_field label='Number of units' type='text' options='' check='is_number' width='element_half'][/av_contact_field] [av_contact_field label='Message' type='textarea' options='' check='' width=''][/av_contact_field] [/av_contact]
Soil radon detector
A soil radon detector is used to measure the presence of radon in soil air at a depth of 70-100 centimetres. Measurement is performed using a probe (a skewer-like pipe) that is inserted into the soil. The instrument needs to ensure discrimination of long-lived radon progeny in order to eliminate the background from polonium-214, which has a half-life of approximately 30 minutes. MARKUS eliminates the contribution from polonium-214, meaning there is no need to wait 2-3 hours before performing the next measurement. With MARKUS, the waiting time between measurements is just 18 minutes (six half-lives).
As the measurements are performed outdoors, it is also important to choose a robust instrument with a long battery life that can cope with conditions out in the field. It is also important to consider the very high radon levels that may be present in the ground and to ensure that the instrument is able to cope with these. MARKUS from Radonova possesses all these features.
MARKUS6 870 €MARKUS is a well-proven professional instrument that measures radon in soil. With MARKUS you get: A radon instrument that easily measures radon levels in the soil. Radon content within 14 minutes after starting the measurement. Only 18 minutes waiting time is needed between each measurement. A robust instrument designed for field use. An instrument that can measure very high radon levels. Common areas of application for MARKUS are the investigation of radon content in soil before new construction or other mapping, as well as momentary measurement in air with concentrations above 1 kBq/m³.
MARKUS Slide Hammer655 €Slide hammer for use with MARKUS to insert the probe into the ground and to remove the probe from the ground once measurement is complete.
MARKUS Water guard390 €Water guard screwed between probe tubes and instruments.
Logger
A logger is predominantly used in connection with radon control measures. The aim is to log the temporal variation in radon levels over a longer period and to monitor how effective a measure is. The requirements for temporal resolution govern how sensitive the instrument has to be in order to be able to statistically ensure the result and minimise errors at each measuring point in the time range. The recommended temporal resolution is normally 1-2 hours.
- ATMOS9 850 €ATMOS is the world’s most sensitive radon instrument with energy-dissolving pulse chamber. It can be used in both field and laboratory. This can be achieve that thanks to its low weight, high sensitivity and fast response time together with an efficient pump and analysis. With ATMOS you get: Correct radon content with 10% error margin within 10 minutes. Ability to perform various measurements at 20 minutes intervals. A complete software for analyzing time distribution of radon content and its energy spectrum. An easily portable instrument with high memory and battery capacity. You can perform significantly more measurements with ATMOS in one day compared to any other instruments on the market. ATMOS also logs ambient temperature, humidity and atmospheric pressure with its integrated sensors. Common uses for ATMOS are property inspection and follow-up measurements after action, but it is also a common reference instrument for calibration chambers.
SPIRIT HUB200 €The SPIRIT Radonlogger automatically connects to a SPIRIT HUB or directly to an external LoRaWAN network if one is available at the measurement site. SPIRIT HUB connects via network cable. A SPIRIT Radonlogger located within a radius of 200 meters automatically connects to a SPIRIT HUB. There is no limit to how many loggers you can simultaneously connect to a HUB. If a logger is not connected, it still measures and automatically connects as soon as it arrives within sufficient distance of a HUB or external LoRaWAN network.
SPIRIT Radonlogger – Follow-up measurement at workplaces and in homesfr. 1 190 €SPIRIT Radonlogger is a wireless detector with unique high sensitivity for customers who want to easily conduct accurate and reliable radon measurements at workplaces and in homes. Measurement data with graphs can be read both on a computer and on a mobile phone. You can also generate reports for ex. 7-days follow-up radon measurements during working hours or for measurements in homes post mitigation. You place the device at the measurement site and then log in to My Pages via our website. Once you have connected the radon logger to your account, the radon content is displayed in real time. A graph visualizes radon content, temperature, humidity and air pressure for the measurement site. Average and measurement uncertainty are calculated automatically between selected time intervals. Each device is individually calibrated. When you buy your first device, we recommend that you choose a package with SPIRIT HUB. This is to secure the wireless connection to your SPIRIT devices. [av_hr class='invisible' icon_select='yes' icon='ue808' font='entypo-fontello' position='center' shadow='no-shadow' height='20' custom_border='av-border-thin' custom_width='50px' custom_margin_top='30px' custom_margin_bottom='30px' custom_border_color='' custom_icon_color='' id='' custom_class='' template_class='' av_uid='av-6s57q' sc_version='1.0' admin_preview_bg='']
EcoQube – Digital Radon Measurement for Homes and Apartments215 €EcoQube is an affordable measuring instrument for home and apartment owners who want to measure changeable radon levels during the day. EcoQube provides customers with real time insights into hourly fluctuations of radon levels. This is not possible with other consumer instruments, which normally only give an average value for the last 24 hours. EcoQube in Summary: • The first measurement result is obtained within 10 minutes, with a more reliable result acquired within the hour, this compares to other instruments that can take up to 24 hours. • More accurate than other instruments for home use with an industry-leading sensitivity of 40 pulses per hour at 50 Bq / m³ (30 times more sensitive than industry standards). • The instrument provides a statistical measurement uncertainty at an hourly average time that is better than + -15% (@ 200 Bq / m³, 1 hp dev). • Wi-Fi connected - easily connects to Wi-Fi router in the home. No other wireless equipment is needed. EcoQube only supports 2.4 GHz and currently does not support 5 GHz wireless networks. The device is connected to Wi-Fi within a radius of up to 10 meters. • Smartphone App (Android, iOS) makes it possible to monitor radon levels in real time anywhere, anytime. • Ideal solution for monitoring how radon levels vary following a radon reduction measure or a change in ventilation.
RadonEye RD200 PLUS2645 €RadonEye RD200 PLUS2 is used for radon inspections when there is a need for a quick indication of the radon level in individual rooms(within 2 hours). Normally, they are deployed during the inspection at the same time as you examine the leak of radon from the ground with a sniffer and examine the building material with a gamma meter. Dosimeters must be ordered if you wish to measure the average annual value for radon. Measurement performed in this way provides you with an accredited and approved result, which is a potential municipal requirement. The unit is only factory calibrated. For you that is planning to monitor workplaces, we recommend SPIRIT Radonlogger. This software enables to create complete reports by selecting targeted time ranges such as working hours.- RAD8Next-generation electronic radon monitor The new RAD8 is a high-quality scientific electronic radon monitor with complete upgrades compared to the previous version, RAD7, which has been an industry standard for various applications including oceanography, hydrogeology, geology, health physics, environmental remediation, radon testing, measurement technology, and more for several years. With its groundbreaking features and optimizations for outdoor use, RAD8 enhances radon/thoron monitoring in the field and in the laboratory. Its environmentally safe and portable design, coupled with a long battery life and IP67 water/dust resistance even when the case is open, means you can use RAD8 comfortably and worry-free whether you're working near water, in rugged terrain, in a dusty mine, or within the controlled environment of a laboratory. [av_contact email='sales@radonova.se' title='Quotation request' button='Send request' on_send='' sent='We have received your request and will return with a quote shortly.' link='manually,http://' subject='Offertförfrågan UK - RAD8' autoresponder_email='sales@radonova.se' autorespond='' captcha='' form_align='' color='' av_uid='' custom_class='' admin_preview_bg=''] [av_contact_field label='Company' type='text' options='' check='is_empty' width='element_half'][/av_contact_field] [av_contact_field label='Name' type='text' options='' check='is_empty' width='element_half'][/av_contact_field] [av_contact_field label='E-mail' type='text' options='' check='is_email' width='element_half'][/av_contact_field] [av_contact_field label='Number of units' type='text' options='' check='is_number' width='element_half'][/av_contact_field] [av_contact_field label='Message' type='textarea' options='' check='' width=''][/av_contact_field] [/av_contact]
RAD7If you want a sniffer that can distinguish thoron from radon, RAD7 is the sniffer you should have. Battery operating radon instrument Measures radon daughters but distinguishes radon and toron Ability to sniff and locate soil gas entry Each measurement cycle can be printed and changes are easy to see RAD7 is an accurate sniffer that can be used for both short-term or long-term measurements. The instrument is based on a semiconductor detector measuring radon daughters collected with a strong electric field. RAD7 is capable of dissolving the energy of various radon isotopes radon (Radon-222) and toron (Radon-220). After each completed measurement cycle, a printout with the measurement result comes from the wireless included printer. After completion of the measurement, the measurement results can be transferred to a PC for post-analysis and report editing to the end customer. Capture transfer software is included for free and can be automatically translated into multiple languages. With the required accessories, RAD7 can also be used to analyze radon in water and to conduct soil surveys. The price includes also a half-day online training and the possibility to order a service and calibration agreement with 50% discount the first year. [av_contact email='sales@radonova.se' title='Quotation request' button='Send request' on_send='' sent='We have received your request and will return with a quote shortly.' link='manually,http://' subject='Offertförfrågan UK - RAD7' autoresponder_email='sales@radonova.se' autorespond='' captcha='' form_align='' color='' av_uid='' custom_class='' admin_preview_bg=''] [av_contact_field label='Company' type='text' options='' check='is_empty' width='element_half'][/av_contact_field] [av_contact_field label='Name' type='text' options='' check='is_empty' width='element_half'][/av_contact_field] [av_contact_field label='E-mail' type='text' options='' check='is_email' width='element_half'][/av_contact_field] [av_contact_field label='Number of units' type='text' options='' check='is_number' width='element_half'][/av_contact_field] [av_contact_field label='Message' type='textarea' options='' check='' width=''][/av_contact_field] [/av_contact]
Radon sensors (New version!)

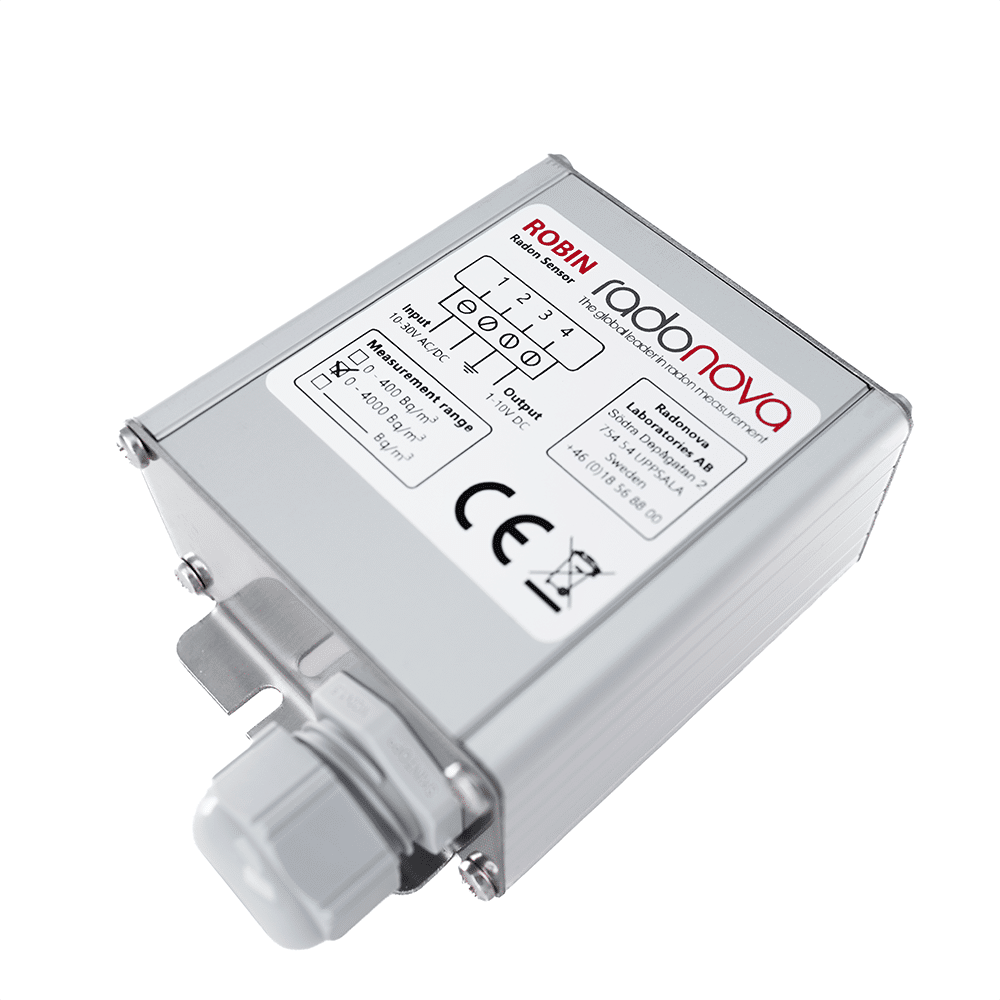

A radon sensor is used to establish a connection with an existing ventilation control system. In many cases, this enables the implementation of a cost-effective radon-reducing measure. Sensors tend to be used in properties that house workplaces, but can also be used in “smart homes”. A radon sensor produces a digital or analogue output signal that is directly proportional to the radon level detected. It is important that the sensor is sufficiently accurate to quickly signal when the radon level exceeds the reference level. Radonova has developed a radon sensor called ROBIN for permanent installation in, for example, smart homes and for use in connection with radon monitoring and radon evacuation. ROBIN can also be integrated into air treatment systems or exhaust fans, for example. This radon sensor produces a value in the form of an analogue output signal (0 V-10 V) that is proportional to the level of radon present in the air. The sensor can, for instance, be connected to a regulator, CPU, data logger, fan controls or an industrial PLC. Unlike cheaper consumer-grade instruments, ROBIN is sensitive enough to be able to produce an instantaneous value. This sensor also possesses sufficient EMC immunity, enabling it to be used with thyristor controllers.
